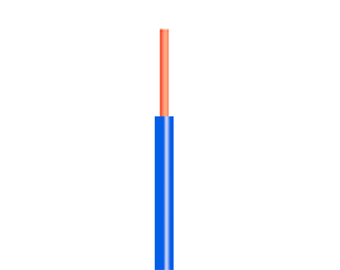

UL 1571
| HOOK-UP WIRE | UL 1571 | ||||
 |
Product Construction 產品結構 | ||||
| Conductor 導體 |
Material 材料 | Tinned Copper 鍍錫銅絲 | |||
| AWG 線規 | 22 | ||||
| Conductors No 導體數 | 17 | ||||
| Diameter 規格 | 0.16 | ||||
| Jacket 護套 |
Material 材料 | SR-PVC | |||
| Average Thickness 平均厚度 | 0.26 | ||||
| Minimun Thickness 最小厚度 | 0.22 | ||||
| Diameter 線徑 | 1.28 | ||||
| Product Standard 產品標準 | |||||
| Rated Temperature 額定溫度（℃） |
80 | ||||
| Rated Voltage 額定電壓（V） |
300 | ||||
| Product Standard Certification | E308941 | ||||
| Passes UL VW-1 & CSA FT1 vertical flame test 通過UL VW-1 & CSA FT1垂直耐燒測試 |
|||||
| Reference Standard | UL 758 UL 1581 | ||||
| Printing 印字 | |||||
AMCOWRE E308941  AWM STYLE 1571 2AWG 80℃ 300V VW-1 --- c AWM 1 A/B 80℃ 300V FT1 -F- -LF- ROHS S&Y |
|||||
| Mechanical Characteristic 物理機械性能 | |||||
| Testing Object 檢測對象 | Jacket Material 護套料 | ||||
| Testing Material 實驗材料 | SR-PVC | ||||
| Aging Condition 老化條件（℃*hrs） | 113*168 | ||||
| Befor Aging 老化前 |
Tensile Strength 抗張強度（Mpa） | >=20.7 | |||
| Elongation伸長率(%) | >=100 | ||||
| After Aging 老化后 |
Tensile Strength 抗張強度(Mpa) | >=70% of unaged | |||
| Elongation伸長率(%) | >=70% of unaged | ||||
| AWG 線規 |
Conductor No./mm 導體數/線徑 |
Jacket Diameter 護套線徑 |
Jacket Average Thickness 平均厚度 |
Jacket Minimum Thickness 最小厚度 |
Weight 重量 |
| 22 | 17/0.16 | 1.28 | 0.26 | 0.22 | 4.31 |
| 24 | 11/0.16 | 1.15 | 0.26 | 0.22 | 3.08 |
| 26 | 7/0.16 | 1.00 | 0.26 | 0.22 | 2.16 |
| 28 | 7/0.127 | 0.90 | 0.26 | 0.22 | 1.56 |
| 30 | 7/0.1 | 0.82 | 0.26 | 0.22 | 1.16 |
